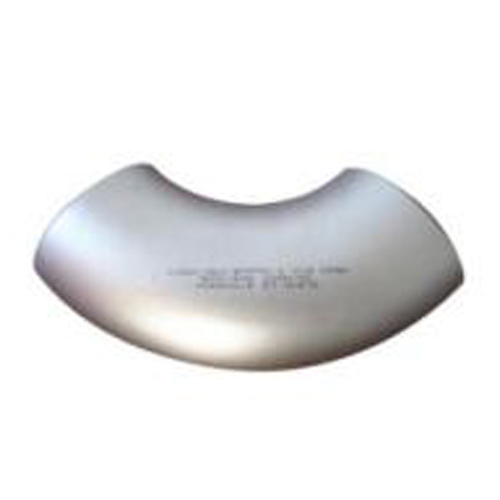

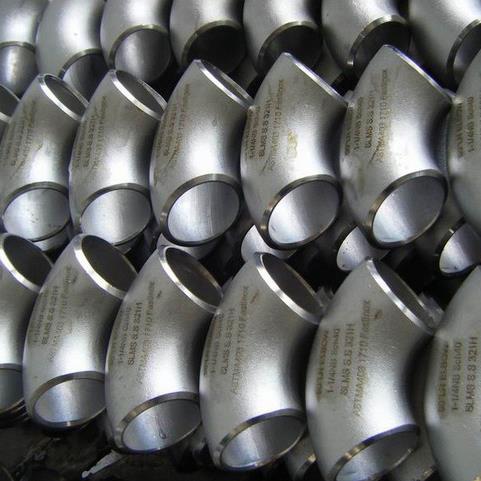

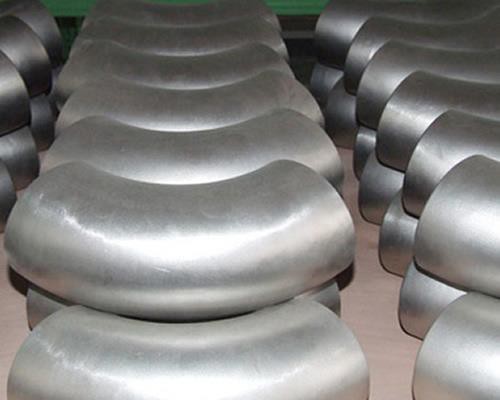

Welded elbows are widely used in heavy industries. An elbow is a type of pipe fitting which could link two pipes together. With experience in manufacturing stainless steel fittings more than a decade, our products and services are guaranteed.
1. Material: 304, 304L, 321, 316, 316L, etc.
2. Standard: ASME, MSS, HG, DIN, JIS, GB
3. Type: 90 degree Long Radius, 90 degree Short Radius, 45 degree Long Radius, 180 degree Return Band
We offer Sanitary Fittings, Stainless Steel Sanitary Fittings, and Stainless Steel Tube Fittings that are manufactured using optimum quality stainless steel. Our wide array of sanitary stainless steel tee is known among the customer's due to its tensile strength. These Steel Tube Fittings in various grades and finishes as per the needs.
 Stainless Steel Elbow manufactures |  Stainless Steel Elbow suppliers |  Stainless Steel Elbow price |
Specification of Stainless Steel Butt Welded Elbow:
| Specification | Type | Data |
| Size | 90 degree Long/Short Radius 45 degree Long Radius | Seamless 1/2”-20”(DN15-DN500) Welded 1/2”-48” (DN15-DN1200) |
| 180 degree Return Band | Seamless 1/2”-4”(DN15-DN100) | |
| Wall Thickness | 90 degree Long/Short Radius 45 degree Long Radius | SCH5S-SCH160 |
| 180 degree Return Band | SCH5S-SCH80S | |
| Material | 304, 304L, 321, 316, 316L, etc. | |
| Standard | GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635 | |
| HG/T21631, ASME B16.9, MSS SP-43, DIN 2605, JIS B2313 | ||
Types of Stainless Steel Butt Welded Elbow:
Technical Parameter:
| Butt-welding Elbows ANSI B16.9 | ||||
| Nominal Diameter | Outside Diameter/mm | Center to End/mm | ||
45 degree Elbow | 90 degree Elbow | |||
| DN | OD | Long Radius | Long Radius | Short Radius |
| 1/2 | 21.3 | 15.7 | 38.1 | - |
| 3/4 | 26.7 | 19.1 | 38.1 | - |
| 1 | 33.4 | 22.4 | 38.1 | 25.4 |
| 1 1/4 | 42.2 | 25.4 | 47.8 | 31.8 |
| 1 1/2 | 48.3 | 28.4 | 57.2 | 38.1 |
| 2 | 60.3 | 35.1 | 76.2 | 50.8 |
| 2 1/2 | 73 | 44.5 | 95.3 | 63.5 |
| 3 | 88.9 | 50.8 | 114.3 | 76.2 |
| 3 1/2 | 101.6 | 57.2 | 133.4 | 88.9 |
| 4 | 114.3 | 63.5 | 152.4 | 101.6 |
| 5 | 141.3 | 79.2 | 190.5 | 127 |
| 5 | 168.3 | 95.3 | 228.6 | 152.4 |
| 8 | 219.1 | 127 | 304.8 | 203.2 |
| 10 | 273.1 | 158.8 | 381 | 254 |
| 12 | 323.9 | 190.5 | 457.2 | 304.8 |
| 14 | 355.6 | 222.3 | 533.4 | 355.6 |
| 16 | 406.4 | 254 | 609.6 | 406.4 |
| 18 | 457.2 | 285.8 | 685.8 | 457.2 |
| 20 | 508 | 317.5 | 762 | 508 |
| 22 | 558.8 | 342.9 | 838.2 | 558.8 |
| 24 | 609.6 | 381 | 914.4 | 609.6 |
Application of Stainless Steel Butt Welded Elbow:
Electricity, Petroleum, Gas, Petrifaction, Chemical Industry, Ship, Heating, Papermaking, Metallurgy
Package of Stainless Steel Butt Welded Elbow:
Wooden Bracket or according to your request
With wide experience and expertise, Beall Industry Group is one of the leading stainless steel elbow manufacturers and suppliers. We have hundreds of high-qualified workers at your service. Please rest assured to get the competitive price stainless steel elbow for sale with us.
